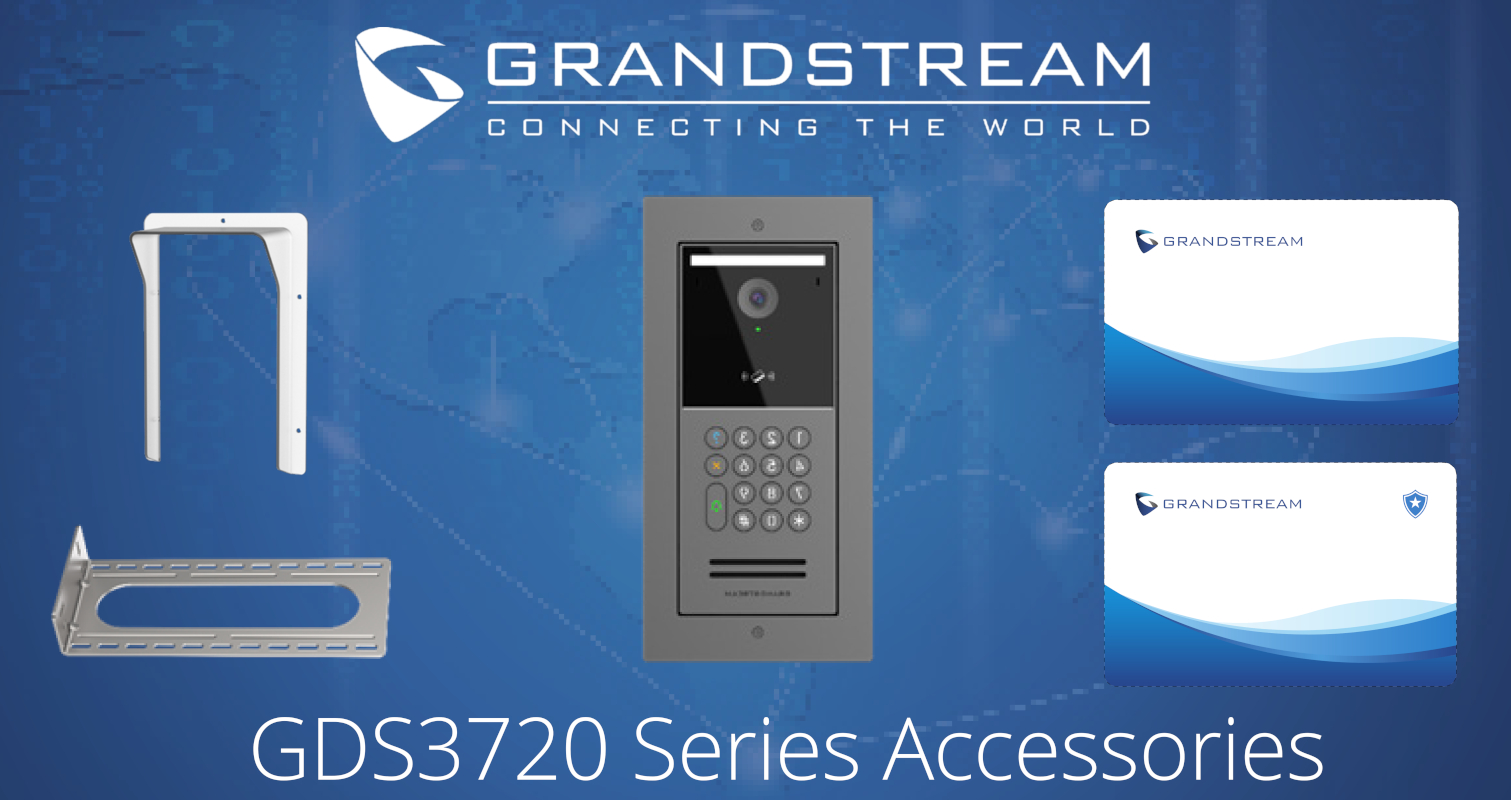

GDS3720 Series Accessories
GDS3725/GDS3726 In-Wall Mounting Kit
The In-Wall Mounting Kit is available for use with the GDS3725/GDS3726 IP Video Door Station. This mounting kit allows the GDS3725/GDS3726 to be mounted flushed within a wall. It supports solid wall, stud and drywall (hollow wall) installation. When installing the GDS3725/GDS3726 or the In-Wall Mounting kit, please follow local building and electrical code. The device is suggested to be installed with the bottom of the device 50-52 inches above the ground.
| Model | GDS372X-FM |
| Material | In-wall box-plastic/Decorative cover - Zinc alloy |
| Compatibility | GDS3725/GDS3726 |
| In-wall box Dimensions | 130 x 250.3 x 41.5mm |
| In-wall box Weight | 179g |
| Decorative cover Dimensions | 125.5 x 254.8 x 4.5mm |
| Decorative cover Weight | 254g |
| Mounting | Flush-mount |

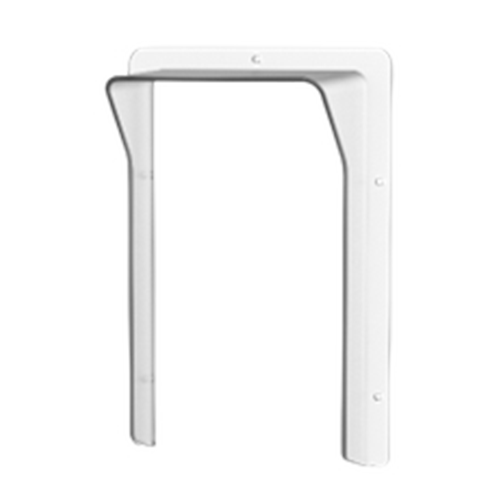

GDS3720 Series Rain Cover
The rain cover helps protect the GDS3720 Series IP video door stations from harsh weather, reducing the risk of rain or snow interfering with audio and video performance.
| Model | GDS372X-RC |
| Material | Plastic |
| Compatibility | GDS3720 Series |
| Dimensions | 234 x 163 x 64.2mm |
| Weight | 97.1g |
| Mounting | Wall or Flush-mount |
L-type Bracket
The L-shaped stainless-steel bracket is available for use with the GDS37xx IP video door station in flush mounting applications. Constructed from durable stainless steel, it provides structural reinforcement during installation on wall studs.
| Model | L-shaped bracket |
| Material | Stainless steel 5304 |
| Compatibility | GDS3720 series in-wall mounting |
| Dimensions | 203.2mm x 86mm x 35mm |
| Weight | 185.6g |
IC Card (G-AC1)
The RFID Card is compatible for use with the GDS3720 series. This non-writable proximity induction card receives radio energy from the RFID Card Reader to power the card and interacts with the GDS3720 series. This contactless IC card is easy to setup and use, and therefore is ideal for use in a wide range of facility access, attendance and security applications.

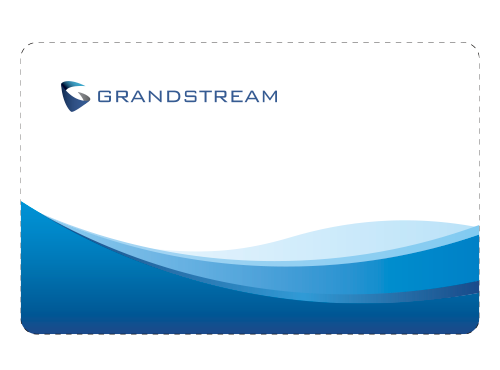

IC Card (G-AD2)
The RFID Card is compatible for use with the GDS3720 series. This non-writable proximity induction card receives radio energy from the RFID Card Reader to power the card and interacts with the GDS3720 series. This contactless IC card supports the AES-128
| Card Type | Mifare Classic EV1(S50) | Mifare DESFire EV3 |
| Working Frequency | 13.56MHz | 13.56MHz |
| Storage Capacity | 1KB | 2KB |
| Operating Distance | > 30mm | > 10mm |
| Life Span | > 100,000 Times | |
| Packaging Materials | PVC, ABS | |
| Encapsulation Method | PVC Laminated | |
| Power Supply Method | Passive Card | |
| Working Temperature | -30°C - 60°C | |
| Storage Temperature | -30°C ~ 80°C | |
| Product Dimension | 85.6mm x 53.9mm x 0.93mm + 0.5mm | |

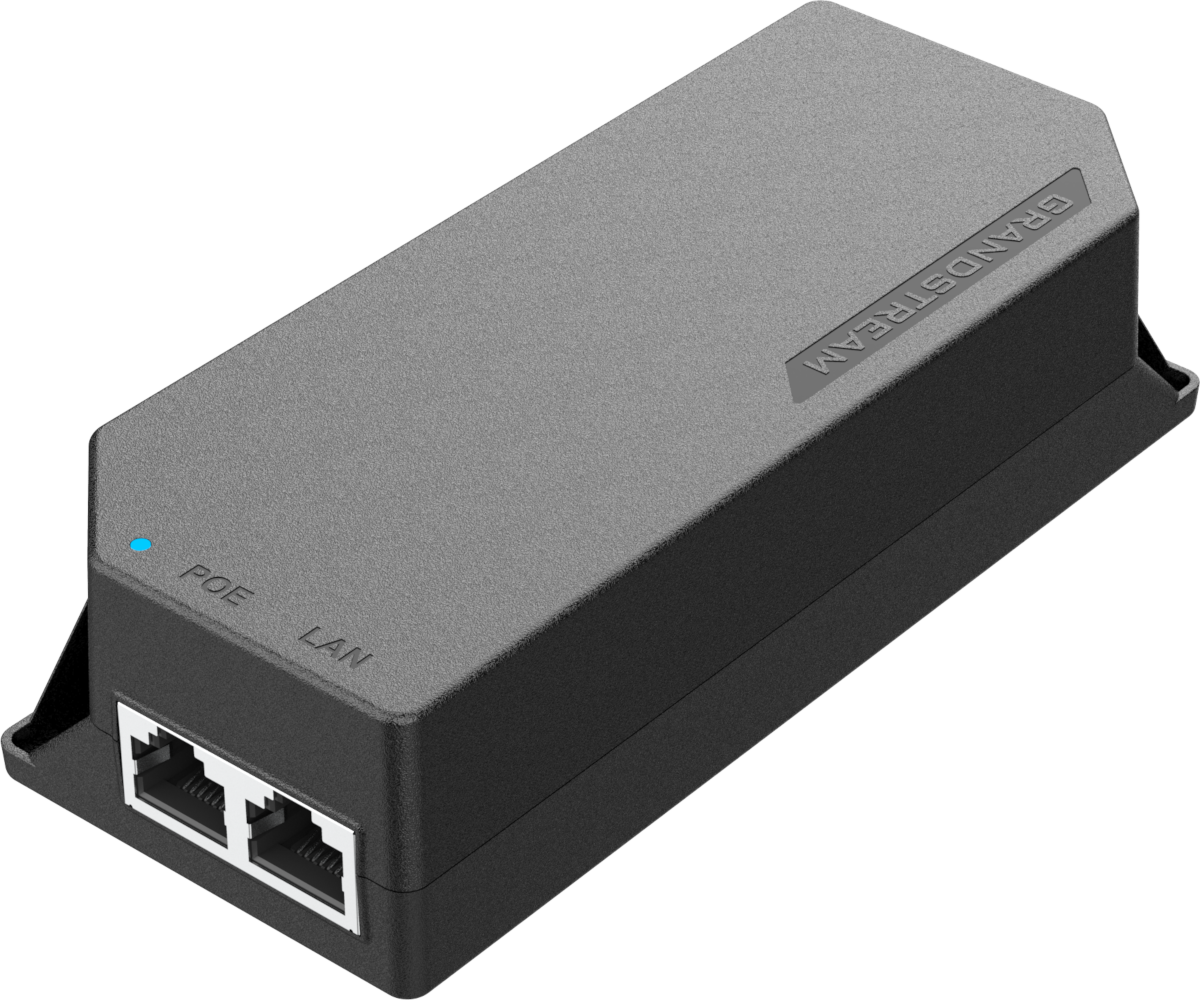

Power over Ethernet Injector
GS-POE15W-MG / GS-POE30W-MG
GS-POE15W/30W are plug-and-play PoE Injectors, which provide power for Grandstream's PoE powered devices, such as Wireless Access Points, IP phones, etc. They comply with IEEE 802.3af/at/bt standards. They have built in power adapter with 1.2m AC cable, 1x 2.5Gbps RJ45 LAN IN and 1x 2.5Gbps RJ45 LAN OUT with PoE.
| GS-POE15W-MG | GS-POE30W-MG | |
| Standards | IEEE 802.3 af | IEEE 802.3 af/at |
| Interface Ports | 1xAC power Jack 1x2.5Gbps RJ45 LAN IN, 1x2.5Gbps RJ45 LAN OUT with PoE |
|
| Input Voltage | 100~240VAC, 50/60Hz | |
| Output Voltage | 54VDC 1,2 +; 3,6 - |
|
| PoE Output Power | 20W | 30.2W |
| LED | Power On: Blue PoE Load: Purple |
|
| Environmental | Operation: 0°C to 45°C Storage: -10°C to 60°C Humidity: 10% to 90% Non-condensing |
|
| Dimension (without Cable) |
Unit: 140.55mm x 60.3mm x 35.4mm Entire Package: 225mm x 130.5mm x 46mm |
|
| Weight | Unit: 175g Entire Package: 400g |
|
| Package Content | GS-POE15W-MG, 1.2m AC Cable, Quick Installation Guide |
GS-POE30W-MG, 1.2m AC Cable, Quick Installation Guide |
| Compliance | FCC, CE, RCM, IC | |
